Resonator Spectroscopy#

Tutorial Objective#

If the readout procedure of the spin system is performed using RF reflectometry, impedance matching between the quantum dot device and the readout port is typically achieved via an LCR circuit.

The objective of this tutorial is to identify the resonance frequency of such a LCR circuit at which the effective impedance of the quantum-dot device is best matched to the 50 \(\Omega\) readout port (the characteristic impedance of standard coaxial cables and output ports of most experimental instruments). Around this resonance, small changes in the electrostatic potential of the sensor or quantum dots shift the effective impedance of the LCR circuit. These impedance shifts lead to measurable changes in the reflected RF signal, providing a sensitive readout mechanism.

Imports

[1]:

from __future__ import annotations

import numpy as np
from dependencies.analysis_utils import ResonatorSpectroscopyAnalysis
from dependencies.simulated_data import get_resonator_spec_data

from qblox_scheduler import HardwareAgent, Schedule
from qblox_scheduler.operations import (
    IdlePulse,
    Measure,
    SetClockFrequency,
    SSBIntegrationComplex,
    VoltageOffset,
)
from qblox_scheduler.operations.expressions import DType
from qblox_scheduler.operations.loop_domains import arange, linspace
from qblox_scheduler.resources import ClockResource

/.venv/lib/python3.14/site-packages/quantify_core/utilities/general.py:13: QCoDeSDeprecationWarning: The `qcodes.utils.helpers` module is deprecated. Please consult the api documentation at https://microsoft.github.io/Qcodes/api/index.html for alternatives.
  from qcodes.utils.helpers import NumpyJSONEncoder

Hardware/Device Configuration Files#

We use configuration files in order to describe the hardware properties (e.g. cluster ip, connected modules, output ports) and quantum device properties (charge sensors, qubits, barriers and their associated properties) in one accessible location, respectively. Check the Getting Started Guide for further information.

Based on the information specified in these files, we establish the hardware and device configurations that determine the system’s connectivity.

[2]:

hw_config_path = "dependencies/configs/tuning_spin_coupled_pair_hardware_config.json"
device_path = "dependencies/configs/spin_with_psb_device_config_2q.yaml"

Experimental Setup#

In order to run this application example, you will need a quantum device that consists of a double quantum dot array (q0 and q1), with a charge sensor (cs0) connected to reflectometry readout. The DC voltages of the quantum device also need to be properly tuned. For example, reservoir gates need to be ramped up for the accumulation devices. The charge sensor can be a quantum dot, quantum point contact (QPC), or single electron transistor (SET).

Hardware Setup#

The HardwareAgent() is the main object for Qblox experiments. It provides an interface to define the quantum device, set up hardware connectivity, run experiments, and receive results. For more information about the HardwareAgent() you can check the Core concepts of qblox-scheduler page.

[3]:

hw_agent = HardwareAgent(hw_config_path, device_path)
hw_agent.connect_clusters()

# Device name string should be defined as specified in the hardware configuration file
sensor_0 = hw_agent.quantum_device.get_element("cs0")
hw_opts = hw_agent.hardware_configuration.hardware_options
cluster = hw_agent.get_clusters()["cluster0"]

/.venv/lib/python3.14/site-packages/qblox_scheduler/qblox/hardware_agent.py:499: UserWarning: cluster0: Trying to instantiate cluster with ip 'None'.Creating a dummy cluster.
  warnings.warn(

As can be observed from the defined quantum devices and the hardware connectivies of these elements, the relevant modules and connections for this tutorial are:

QRM (Module 4):

  • \(\text{O}^{1}\) and \(\text{I}^{1}\): Charge sensor (cs0) resonator probe and readout connection.

Pulsed Spectrocopy - Schedule & Measurement#

We define all variables for the experiment schedule in one location for ease of access and modification.

[4]:

repetitions = 301
center_frequency = 200 * 1e6
width = 75e6
frequencies = np.linspace(center_frequency - width / 2, center_frequency + width / 2, 300)
sensor = sensor_0

Schedule definition#

[5]:

res_spec_schedule = Schedule("Resonator Spectroscopy Schedule", repetitions=repetitions)

# Define a loop operation to sweep the frequency of the readout port signal.
with (
    res_spec_schedule.loop(arange(0, repetitions, 1, DType.NUMBER)),
    res_spec_schedule.loop(
        linspace(
            start=center_frequency - width / 2,
            stop=center_frequency + width / 2,
            num=300,
            dtype=DType.FREQUENCY,
        )
    ) as freq,
):
    res_spec_schedule.add(
        Measure(
            sensor.name,
            freq=freq,
            coords={"frequency": freq},
        )
    )
    res_spec_schedule.add(IdlePulse(8e-9))

Now, we will run the schedule. See the documentation on the QRM Module and Readout Sequencers for information on how the signal is processed upon acquisition.

[6]:

pulsed_res_spec_data = hw_agent.run(res_spec_schedule)
pulsed_res_spec_data

/.venv/lib/python3.14/site-packages/qblox_scheduler/operations/measurement_factories.py:376: FutureWarning: clock_freq_new is deprecated as an argument to SetClockFrequency and will be removed in qblox-scheduler >= 2.0; use frequency instead.
  subschedule_with_freq.add(SetClockFrequency(clock=clock, clock_freq_new=freq))
/.venv/lib/python3.14/site-packages/qblox_scheduler/operations/measurement_factories.py:378: FutureWarning: clock_freq_new is deprecated as an argument to SetClockFrequency and will be removed in qblox-scheduler >= 2.0; use frequency instead.
  subschedule_with_freq.add(SetClockFrequency(clock=clock, clock_freq_new=None))

[6]:

<xarray.Dataset> Size: 12kB
Dimensions:            (acq_index_0: 300)
Coordinates:
  * acq_index_0        (acq_index_0) int64 2kB 0 1 2 3 4 ... 295 296 297 298 299
    loop_repetition_0  (acq_index_0) float64 2kB 0.0 1.0 2.0 ... 298.0 299.0
    frequency          (acq_index_0) float64 2kB 1.625e+08 ... 2.375e+08
Data variables:
    0                  (acq_index_0) complex128 5kB (nan+nanj) ... (nan+nanj)
Attributes:
    tuid:     20260415-120448-237-fad565

Analysis - Pulsed Spectroscopy#

[7]:

# Add simulated data in case dummy cluster is being used.
if cluster.is_dummy:
    pulsed_res_spec_data[0].data = get_resonator_spec_data(frequencies)[1]

[8]:

pulsed_res_spec_analysis = ResonatorSpectroscopyAnalysis(
    dataset=pulsed_res_spec_data,
)  # settings_overwrite={"mpl_transparent_background": False}
pulsed_res_spec_analysis.run().display_figs_mpl()

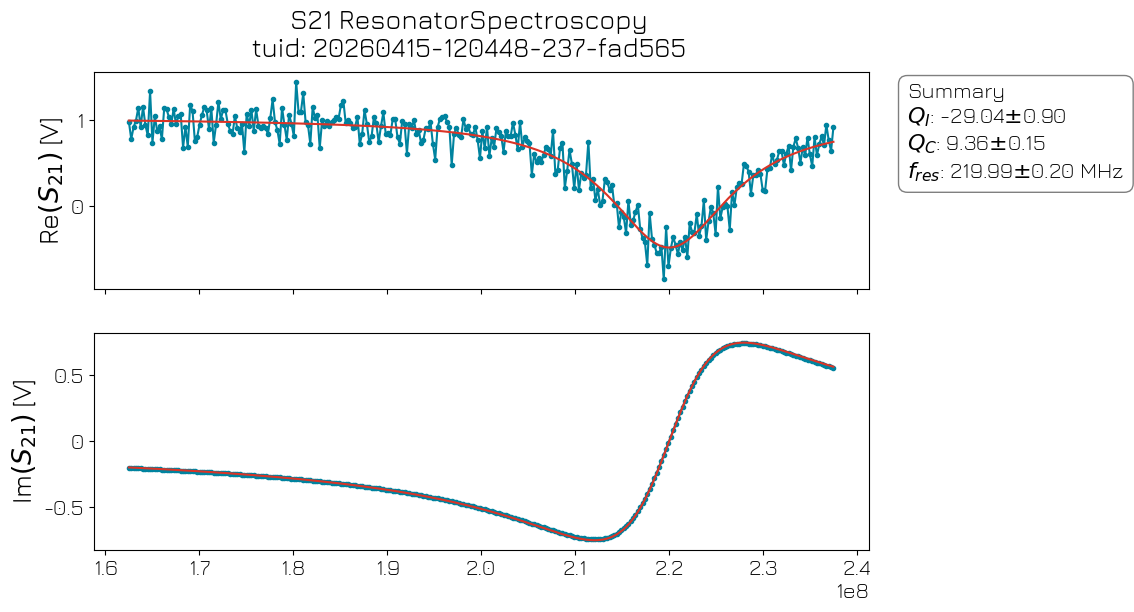

../../../_images/applications_spin_spin_002_resonator_spectroscopy_20_0.png

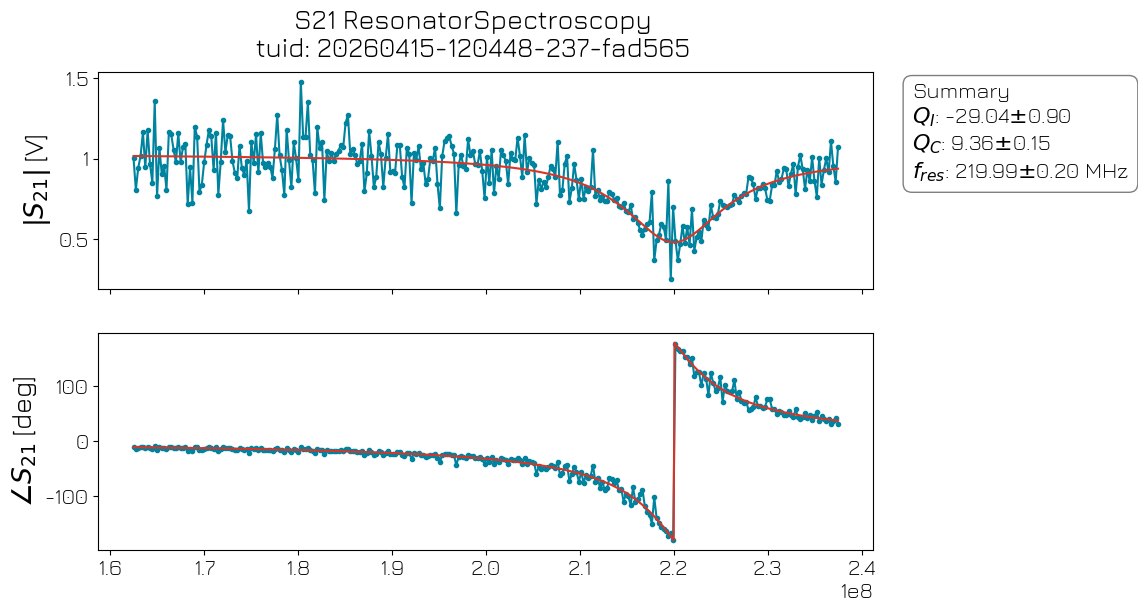

../../../_images/applications_spin_spin_002_resonator_spectroscopy_20_1.png

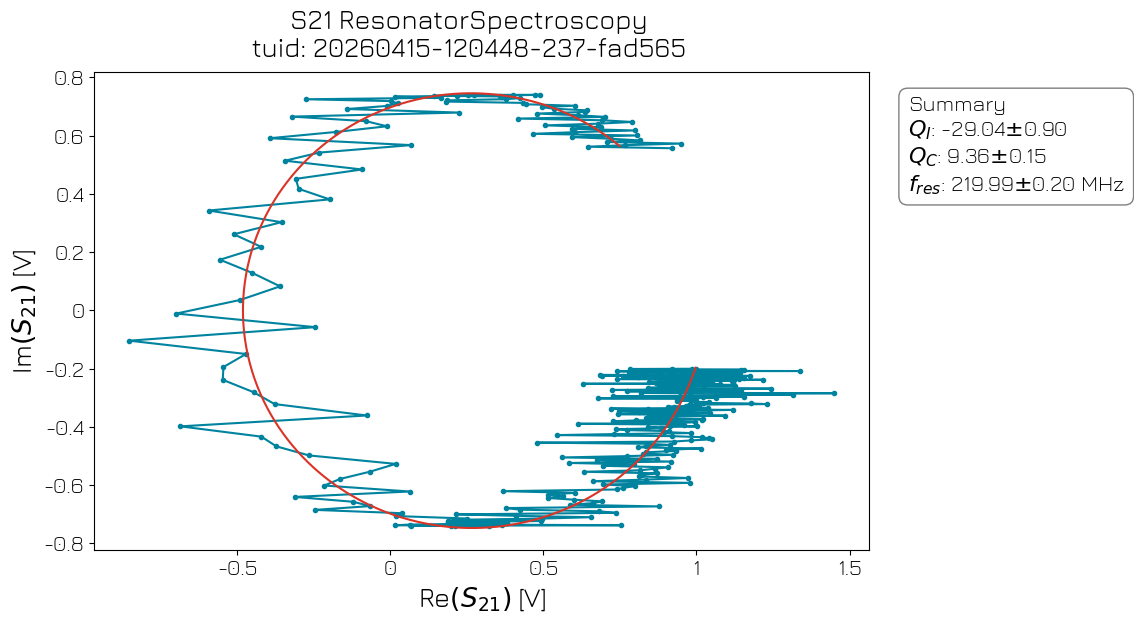

../../../_images/applications_spin_spin_002_resonator_spectroscopy_20_2.png

Continuous Wave Spectrocopy - Schedule & Measurement#

In order to implement a continuous wave (CW) resonator spectroscopy schedule, we return to the pulse level expression instead of the gate level (e.g. the example above with a simple Measure()) gate. Pulse-level expression is applicable here since we will be sweeping the frequency over a continuous tone, which cannot be expressed as a gate operation.

We define all variables for the experiment schedule in one location for ease of access and modification.

[9]:

repetitions = 301
center_frequency = 220 * 1e6
width = 75e6
frequencies = np.linspace(center_frequency - width / 2, center_frequency + width / 2, 300)
sensor = sensor_0
clock = sensor.name + ".ro"
port = sensor.ports.readout

[10]:

cw_res_spec_schedule = Schedule(
    "Continuous Wave Resonator Spectroscopy Schedule", repetitions=repetitions
)

# Define a clock resource to adjust the clock frequency of the sensor readout port as needed
cw_res_spec_schedule.add_resource(ClockResource(name=sensor.name + ".ro", freq=center_frequency))
# Set a voltage offset to mimic a continuous wave spectroscopy experiment
cw_res_spec_schedule.add(VoltageOffset(offset_path_I=0.1, offset_path_Q=0, port=port, clock=clock))
cw_res_spec_schedule.add(IdlePulse(duration=4e-9))

# Define a loop operation to sweep the frequency of the readout port signal.
with (
    cw_res_spec_schedule.loop(arange(0, repetitions, 1, DType.NUMBER)),
    cw_res_spec_schedule.loop(
        linspace(
            start=center_frequency - width / 2,
            stop=center_frequency + width / 2,
            num=300,
            dtype=DType.FREQUENCY,
        )
    ) as freq,
):
    cw_res_spec_schedule.add(SetClockFrequency(clock=clock, clock_freq_new=freq))

    cw_res_spec_schedule.add(
        SSBIntegrationComplex(
            duration=sensor.measure.integration_time,
            port=port,
            clock=clock,
            coords={"frequency": freq},
        )
    )

cw_res_spec_schedule.add(VoltageOffset(offset_path_I=0, offset_path_Q=0, port=port, clock=clock))
cw_res_spec_schedule.add(IdlePulse(duration=4e-9))

/tmp/ipykernel_5133/1947658270.py:23: FutureWarning: clock_freq_new is deprecated as an argument to SetClockFrequency and will be removed in qblox-scheduler >= 2.0; use frequency instead.
  cw_res_spec_schedule.add(SetClockFrequency(clock=clock, clock_freq_new=freq))

[10]:

{'name': '49507c7e-c922-4d66-a8ee-9d7c4d167f93', 'operation_id': '1419779662437891031', 'timing_constraints': [TimingConstraint(ref_schedulable=None, ref_pt=None, ref_pt_new=None, rel_time=0)], 'label': '49507c7e-c922-4d66-a8ee-9d7c4d167f93'}

Now, we will run the schedule. See the documentation on the QRM Module and Readout Sequencers for information on how the signal is processed upon acquisition.

[11]:

cw_res_spec_data = hw_agent.run(cw_res_spec_schedule)
cw_res_spec_data

[11]:

<xarray.Dataset> Size: 12kB
Dimensions:            (acq_index_0: 300)
Coordinates:
  * acq_index_0        (acq_index_0) int64 2kB 0 1 2 3 4 ... 295 296 297 298 299
    loop_repetition_0  (acq_index_0) float64 2kB 0.0 1.0 2.0 ... 298.0 299.0
    frequency          (acq_index_0) float64 2kB 1.825e+08 ... 2.575e+08
Data variables:
    0                  (acq_index_0) complex128 5kB (nan+nanj) ... (nan+nanj)
Attributes:
    tuid:     20260415-120456-201-ccdd9d

Analysis#

[12]:

# Add simulated data in case dummy cluster is being used.
if cluster.is_dummy:
    cw_res_spec_data[0].data = get_resonator_spec_data(frequencies)[1]

[13]:

cw_res_spec_analysis = ResonatorSpectroscopyAnalysis(
    dataset=cw_res_spec_data,
)  # settings_overwrite={"mpl_transparent_background": False}
cw_res_spec_analysis.run().display_figs_mpl()

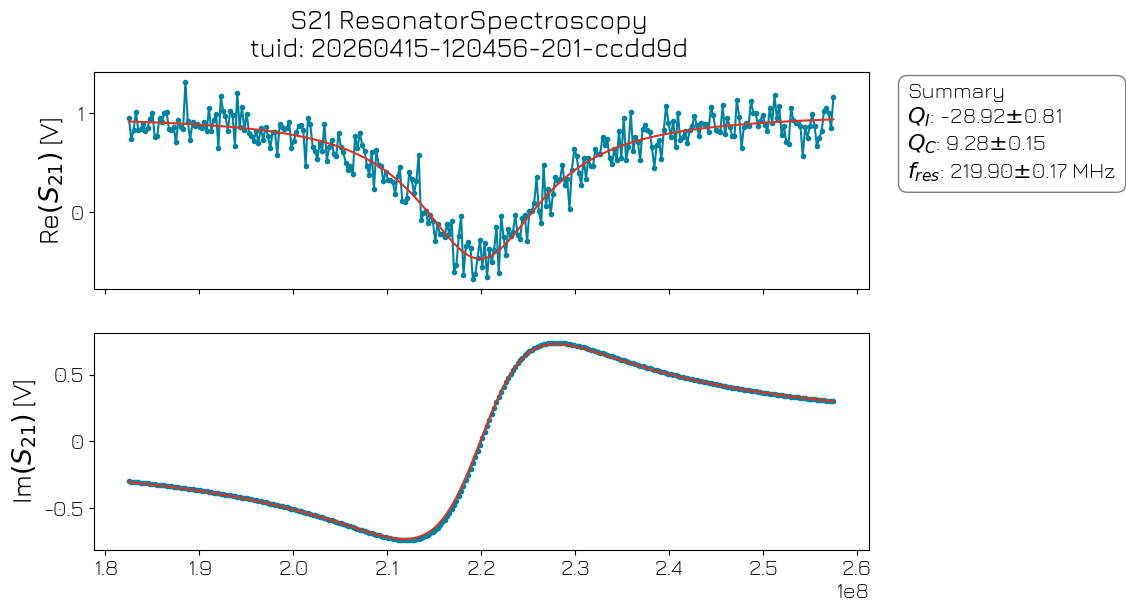

../../../_images/applications_spin_spin_002_resonator_spectroscopy_29_0.png

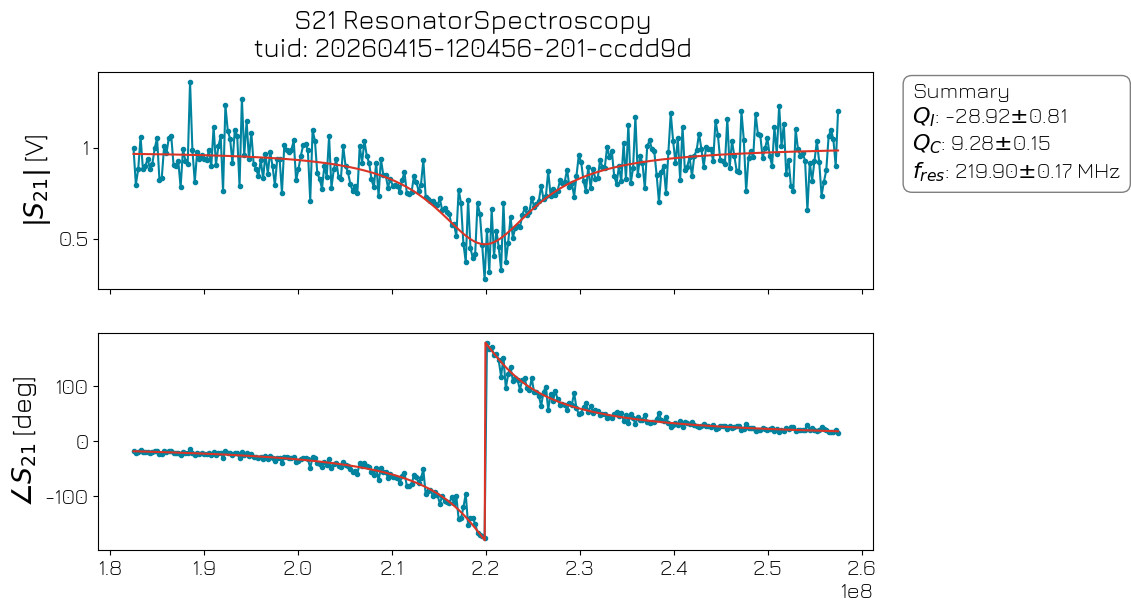

../../../_images/applications_spin_spin_002_resonator_spectroscopy_29_1.png
../../../_images/applications_spin_spin_002_resonator_spectroscopy_29_2.png

The quantum device settings can be saved after every experiment for allowing later reference into experiment settings.

[14]:

hw_agent.quantum_device.to_json_file("./dependencies/configs", add_timestamp=True)

[14]:

'./dependencies/configs/spin_with_psb_device_config_2026-04-15_12-05-01_UTC.json'
